20 Tons Capacity Corn Seed Dryer Machine with Low Temperature Circulating for Multi-Purpose Grain Drying
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Kiểu | loại lô | Cách sử dụng | sấy hạt |
|---|---|---|---|
| Tình trạng | Mới | kích thước cơ thể | 2900*2260*12700mm |
| Tiêu thụ không khí | 10000-14000 m3/h | Quyền lực | 21,7kw |
| Làm nổi bật | 20 Tons Capacity Corn Seed Dryer Machine,Low Temperature Circulating Corn Dryer Machine,Multi-Purpose Grain Drying Grain Dryer Machine |
||
Mô tả sản phẩm
CORN SEED DRYER MACHINE WORKING PRINCIPLE
Put the corn seed into the dryer in batch then circulate orderly by the interaction of electric parts and strural parts. the hot air from the husk burner gets into the mixed-flow drying layer to across and heat the grain under the action of two electric fans. the air flows and takes off the moisture of the grain, then the exhaust gas is excluded out of the machine by the exhaust fan when the moisture reaching to the set value, the machine stops working.
Features:
1. One multi-purpose machine can dry rice , wheat , corn , peanut , soybean , sorghum and other food crops and their seeds.
2. Forced dispersing device and quantitative feeding cycle of positive and negative grain wheel, thin layer and large air volume, even grain drying, high drying efficiency.
3. Low temperature drying , good quality rice, high germination rate of seeds.
4. Large screw feeder, high strength nylon dustpan, stainless steel mesh plate, wear-resistant, anti-deformation, durable, do not hurt the grain.
5. Residual material cleaning device can easily remove grain residual material and prevent mixing.
Technical Parameters
| Model | PGD-20 |
| Loading capacity | 25 Tons Corn Seed Dryer |
| Dimension | 2500*2260*11700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 7.5KW |
| Drying Rate | 0.6~1.4% |
| Heat Consumption | <20,000 KCalorie |
| Weight | 4,000KG |
| Standard Device | Moisture Meter,Conveyor,Fan |

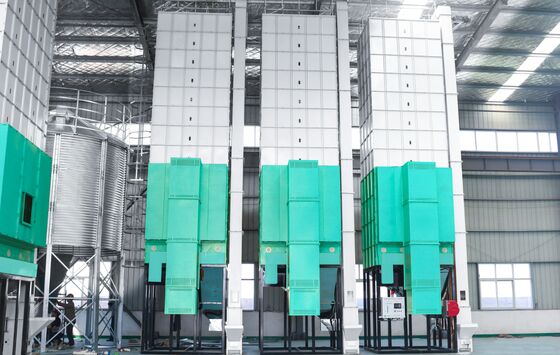

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season

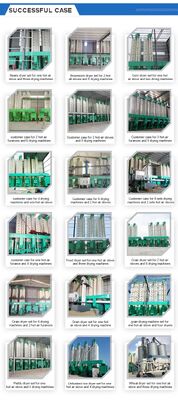

Customer Cases
