30Tons Loading Capacity Corn Dryer Machine with 21.7kw Power and 10000-14000 m3/h Air Consumption
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Kiểu | loại lô | Cách sử dụng | sấy hạt |
|---|---|---|---|
| Tình trạng | Mới | kích thước cơ thể | 2900*2260*12700mm |
| Tiêu thụ không khí | 10000-14000 m3/h | Quyền lực | 21,7kw |
| Làm nổi bật | 25-42 ton corn dryer machine,China factory corn dryer tower,indirect corn dryer with warranty |
||
Mô tả sản phẩm
Features:
1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate;
2. Cancel the lower auger, use unpowered type equalizer, grains can be distributed uniformly, less mechanical failure;
3. Crosswise six-groove drying technology: Thin drying layer, lower drying cost while higher drying efficiency;
4. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter;
5. The dryer comes with fully automatic computer controlling system, easy on operation, high automation.
6. Discharging gravity is pneumatic controlled: Shorten the discharging time, energy saved;
7. The drying-layers adopt assembling mode, its strength is higher than the welding drying-layers, more convenient for maintenance and installation;
8. All the contact surfaces with grains in the drying-layers are designed with inclination, which can effectively offset the transverse force of grains, help to prolong the service life of the drying-layers;
9. The drying-layers has larger ventilation area, the drying is more uniform, and the utilization rate of hot air is significantly improved.
How Did Dryer Machine Works?
1) Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
2) After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
3) When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
4) The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
5) Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
6) Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request
Technical Parameters
| Model | 5HPX-30 |
| Loading capacity | 30Tons |
| Dimension | 2900*2260*12700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5KW |
| Drying Rate | 0.6~1.4% |
| Heat Consumption | <30,000 KCalorie |
| Weight | 6,500KG |
| Standard Device | Moisture Meter,Conveyor,Fan |

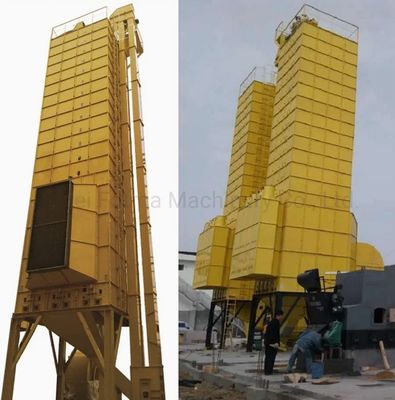

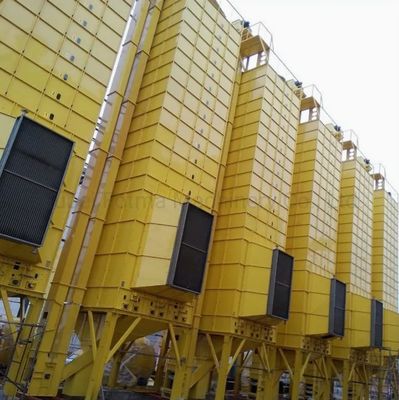

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Company Profile
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
